TeSys F offers high reliability with a long mechanical and electrical life and the most complete line of accessories in the industry.TeSys F contactors are available for the USA market for inductive motor applications from 115 up to 800 full-load amps and resistive loads up to 2100 amps. They offer motor control and overload protection for motors rated up to 800 HP at 480 Vac or 900 HP at 600 Vac.
LC1F1700 Contactor body, TeSys F, 3P(3NO), AC-1, <=1000V AC 1700A without coil
LC1F2100 Contactor body, TeSys F, 3P(3NO), AC-1, <=1000V AC 2100A without coil
LC1F1504 Contactor body, TeSys F, 4P(4NO), AC-1, <=440V 250A without coil
LC1F780 contactor body withou coil, TeSys F, 3P(3NO), AC-3, <=440V 780A,use with coil LX1/LX9 110a€|500V AC 40/400Hz, LX4 110...440V DC

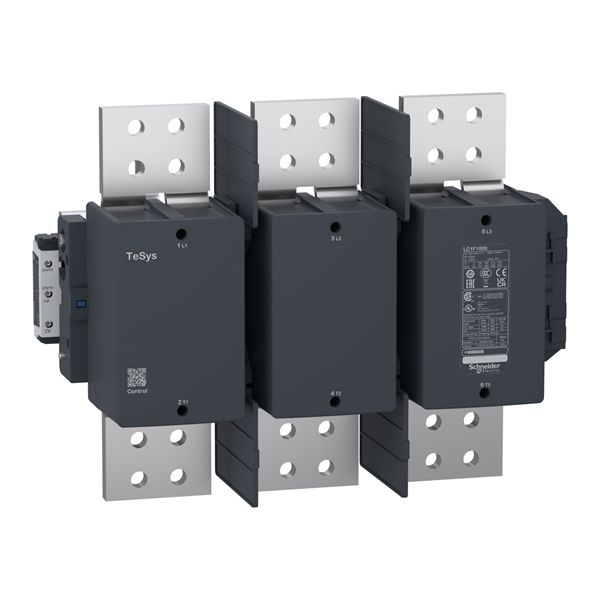

LC1F1000 contactor body withou coil, TeSys F, 3P(3NO), AC-3, <=440V 1000A, with coil LX1/LX9, 110a€|500V AC 40/400Hz, LX4 - 110...440V DC

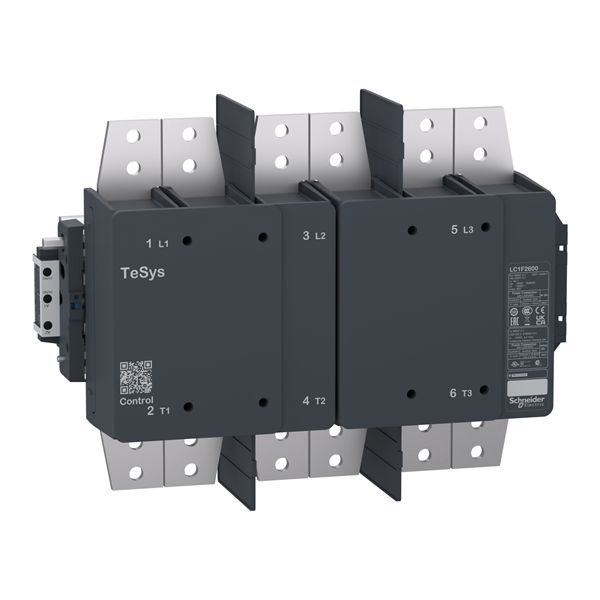

LC1F2600 contactor body withou coil,TeSys F, 3P(3NO) AC-1, <=1000V AC 2600A with coil LX1/LX9, 110…500V AC 40/400Hz, LX4, 110...440V DC
LC1F1250F7 contactor, TeSys F, 3P(3NO), AC-1, <=690V 1260 A, coil 110V AC
LC1F1250P7 contactor, TeSys F, 3P(3NO), AC-1, <=690V 1260 A, coil 230V AC
LC1F1154 Contactor body, TeSys F, 4P(4NO), AC-1, <=440V 200A, without coil
LC1F150X7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 150A, coil 600V AC
LC1F400F722L TeSys F nonreversing contactor - 3P - Open - 600V 400A - 110VAC 40-400Hz Coil
LC1F1400P7 contactor, TeSys F, 3P(3NO), AC-1, <=1000V 1400A, coil 230V AC
LC1F265X7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 265 A, coil 550...600V AC
LC1F1250 contactor body withou coil, TeSys F, 3P(3NO), AC-1 <=440V 1260A with coil LX1/ LX9, 110…600V AC 40/400Hz, LX4, 48…250V DC
LC1F225X7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 225A, coil 600V AC
LC1F400X7 contactor, TeSys F, 3P(3NO), AC-3,<=440V 400 A, coil 550...600V AC
LC1F1400 contactor body withou coil, TeSys F, 3P(3NO), AC-1, <=1000V AC 1400A, with coil LX1/ LX9, 110a€|500V AC 40/400Hz, LX4, 110...440V DC
LC1F500F722L TeSys F nonreversing contactor - 3P - Open - 600V 500A - 110VAC 40-400Hz Coil
LC1F185G722L TeSys F nonreversing contactor - 3P - Open - 600V 185A - 120VAC 40-400Hz Coil
LC1F185X7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 185A, coil 600V AC
LC1F630L7 TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 630 A - coil 208 V AC
LC1F265G722L TeSys F nonreversing contactor - 3P - Open - 600V 265A - 120VAC 40-400Hz Coil
LC1F780F7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 780A, coil 110V AC
LC1F115X7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 115A, coil 600V AC
LC1F7804M7 contactor, TeSys F, 4P(4NO), AC-1, <=440V 1600A, coil 220V AC
LC1F1250M7 contactor, TeSys F, 3P(3NO), AC-1, <=690V 1260 A, coil 220V AC
LC1F7804 Contactor body, TeSys F, 4P(4NO), AC-1, <=440V 1600A without coil
LC1F780G7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 780A, coil 120V AC
LC1F1700P7 contactor, TeSys F, 3P(3NO), AC-1, <=1000V 1700A, coil 230V AC
LC1F2600MD contactor, TeSys F, 3P(3NO), AC1, <=1000V AC 2600 A, coil 220V DC
LC1F7804F7 contactor, TeSys F, 4P(4NO), AC-1, <=440V 1600A, coil 110V AC
LC1F500L7 TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 500 A - coil 208 V AC
LC1F780M7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 780A, coil 220V AC
LC1F2100P7 contactor, TeSys F, 3P(3NO), AC-1, <=1000V 2100A, coil 230V AC
LC1F780Q7 contactor, TeSys F, 3P(3NO), AC-3, <=440V 780A, coil 380V AC
LC1F2100LD contactor, TeSys F, 3P(3NO), AC-1, <=1000V 2100A, coil 200V DC
LC1F1250MD Contactor,TeSys F,3P(3NO), AC-1, <=690V 1260 A, coil 220V DC
LC1F330M722L TeSys F nonreversing contactor - 3P - Open - 600V 330A - 220VAC 40-400Hz Coil
