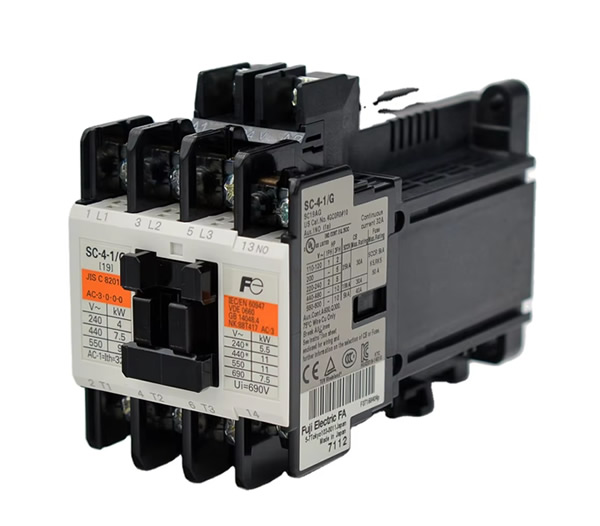

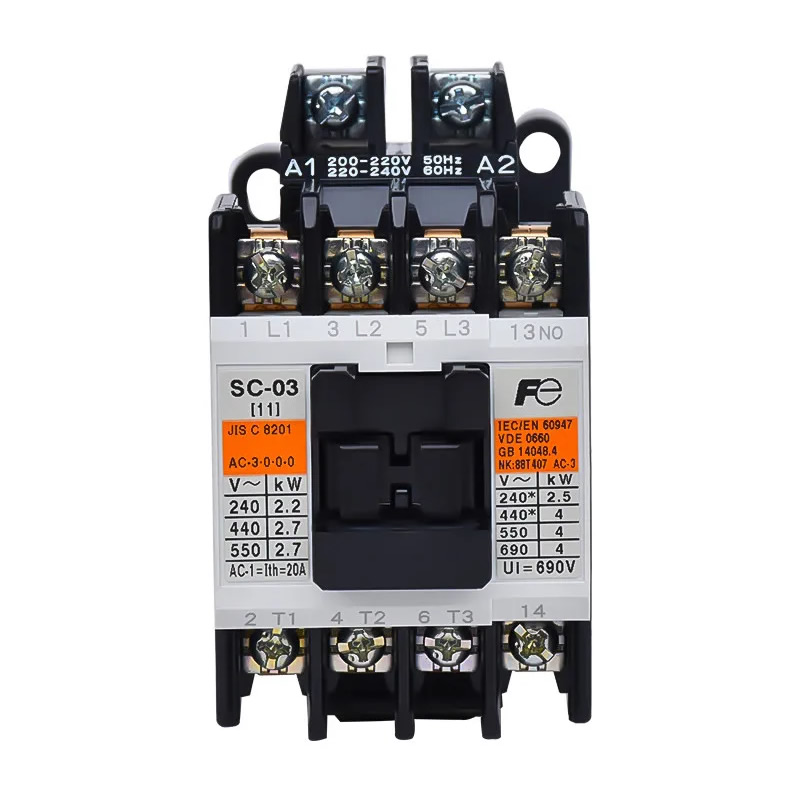

The SC series is a range of long service-life and high-performance contactors. SC-03 to SC-N3 smallframe contactors provide snap-on fitting of numerous optional units, such as auxiliary contact blocks, coil surge suppressors, and operation counters.
Field modifications are quick and easy.
Type SC-N6 and above contactors come with an IC-controlled SUPER MAGNET coil, which operates from both AC and DC sources, to prevent burnt coils and contact chattering by voltage fluctuation.

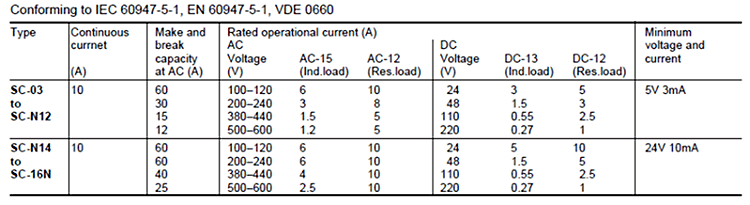

Auxiliary contact ratings

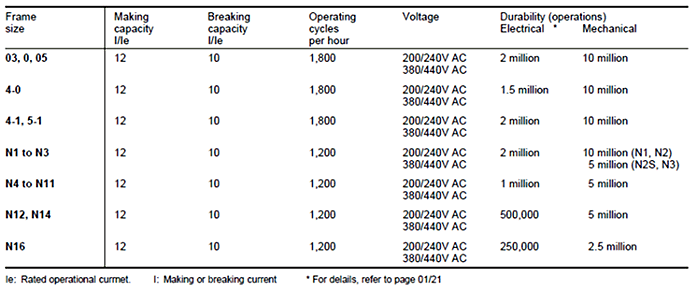

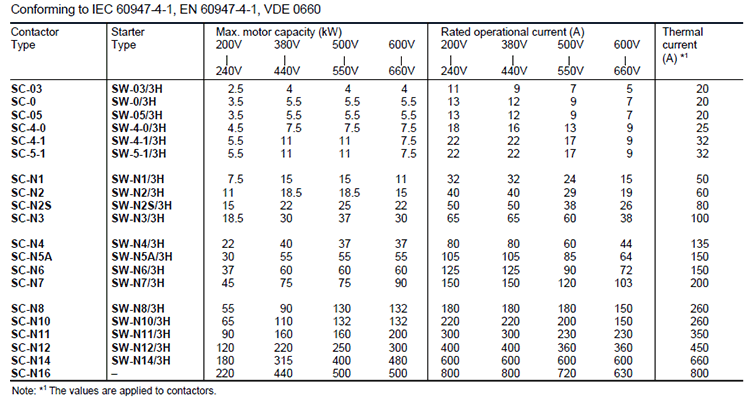

Performance data
