SC-E series take the line-up to the next step in utility with a new finger protection terminal and box lug terminal construction.

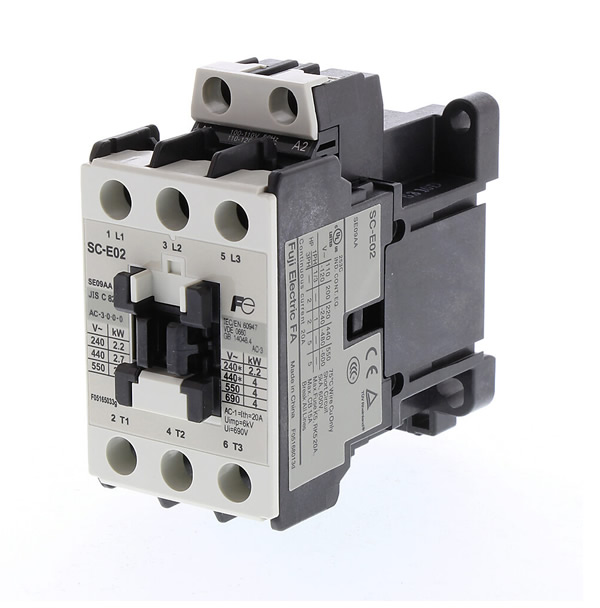

Models SC-E02 to SC-E4 have a 3-pole main circuit structure.
Available in three frame sizes, 43mm, 54mm, and 67mm wide, they enable a significantly reduced mounting area.

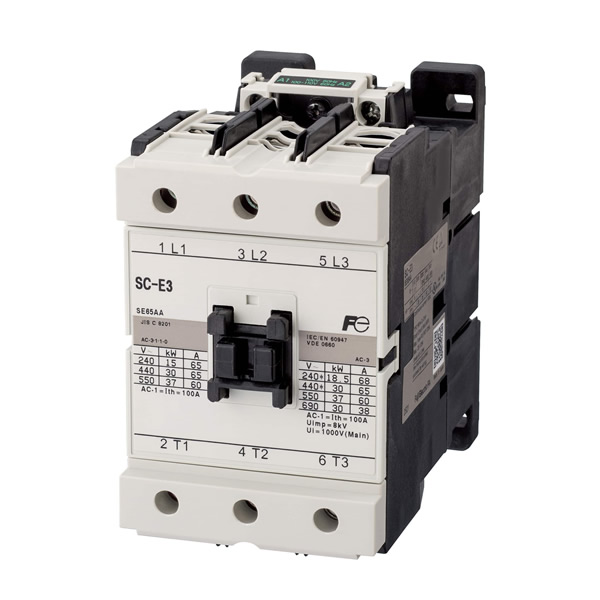

Models SC-E5 to SC-E7 use an IC-controlled SUPER MAGNET to ensure high operating reliability.
IEC 60947-4-1
EN 60947-4-1
VDE 0660
JIS C 8201-4-1
UL 508
CSA C22.2

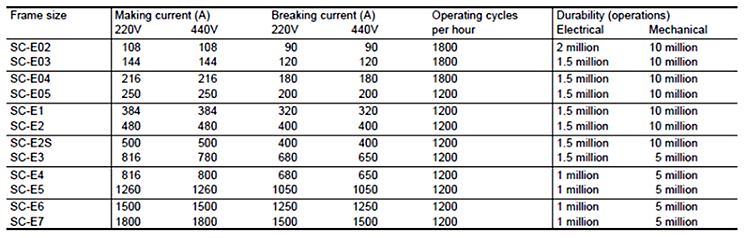

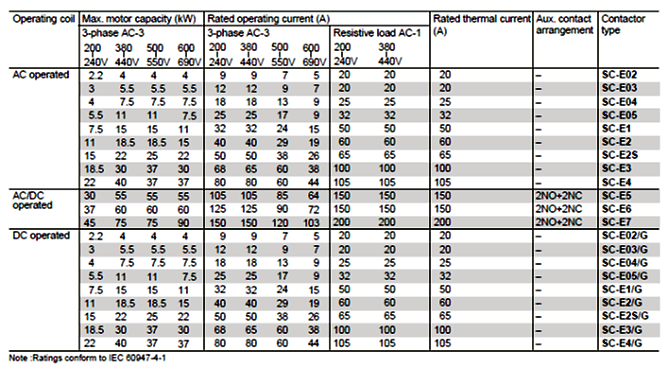

Performance data
