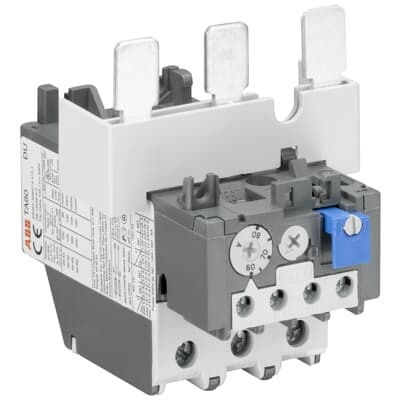

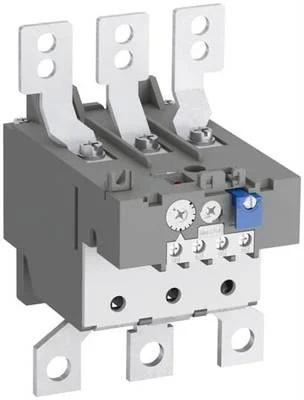

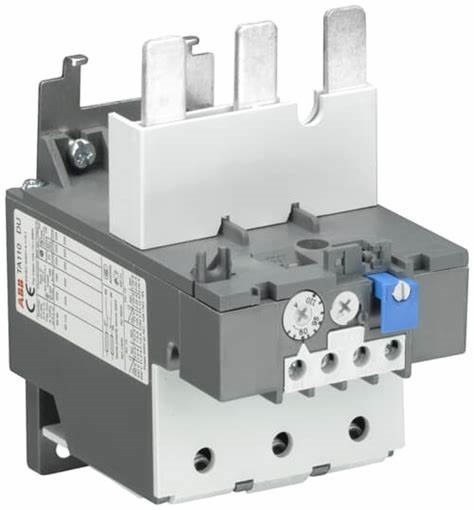

The TA series thermal overload relay has setting current setting level, free tripping mechanism, environmental temperature compensation, lack of phase protection, and reset test function. Suitable for motor protection with rated operating voltage up to AC690V or DC800V. Tripping grade: 10A; protection level: in line with EN50274 standards, to prevent hand contact; in line with European and international standards IEC, VDE, NFC, EN.
ABB provides a complete protection scheme for motor overload. It is mainly used to protect the overload or fault of the motor, and cooperate with A-Li ne full series contactor.
Overload or phase break protection for three-phase motors with rated operating voltage to AC 690V or DC 800V.
| TA110-DU110 | TA25-DU1.8M | TA25-DU6.5M | TA75-DU25 |
| TA110-DU90 | TA25-DU11 | TA25-DU8.5 | TA75-DU25M |
| TA200-DU110 | TA25-DU11M | TA25-DU8.5M | TA75-DU32 |
| TA200-DU135 | TA25-DU14 | TA42-DU25 | TA75-DU32M |
| TA200-DU150 | TA25-DU14M | TA42-DU25M | TA75-DU42 |
| TA200-DU175 | TA25-DU19 | TA42-DU32 | TA75-DU42M |
| TA200-DU200 | TA25-DU19M | TA42-DU32M | TA75-DU52 |
| TA25-DU0.16 | TA25-DU2.4 | TA42-DU42 | TA75-DU52M |
| TA25-DU0.16M | TA25-DU2.4M | TA42-DU42M | TA75-DU63 |
| TA25-DU0.25 | TA25-DU25 | TA450-DU185 | TA75-DU63M |
| TA25-DU0.25M | TA25-DU25M | TA450-DU235 | TA75-DU80 |
| TA25-DU0.4 | TA25-DU3.1 | TA450-DU310 | TA75-DU80M |
| TA25-DU0.4M | TA25-DU3.1M | TA450-SU105 | TA80-DU42 |
| TA25-DU0.63 | TA25-DU32 | TA450-SU140 | TA80-DU52 |
| TA25-DU0.63M | TA25-DU32M | TA450-SU185 | TA80-DU63 |
| TA25-DU1.0 | TA25-DU4.0 | TA450-SU235 | TA80-DU80 |
| TA25-DU1.0M | TA25-DU4.0M | TA450-SU310 | TA85-DU85M |
| TA25-DU1.4 | TA25-DU5.0 | TA450-SU60 | |
| TA25-DU1.4M | TA25-DU5.0M | TA450-SU80 | |
| TA25-DU1.8 | TA25-DU6.5 | TA45-DU45M |
