Application
A-Line contactors are mainly used for controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000 VAC. and 440 VDC.
Description of 3 pole and 4 pole contactors A9 - A300
All A-Line contactors can be assembled side by side. The add-on or built-in auxiliary contacts are suitable for low level currents.
Control circuit types
• A-Line types: AC operated with laminated magnetic circuit.
Contactor types
• 3 pole contactors with NO or NC built in auxiliary contact for A9 - A40 contactors; factory assembled auxiliary contacts for A50 - A300 contactors
• 4 pole contactors: 4 NO or 2 NO & 2 NC without any auxiliary contacts. (A9 - A75)
| A95-30-11 | A75-22-00 | A30-30-10 | A16-40-00 |
| A9-40-00 | A63-30-11 | A300-30-11 | A16-30-10 |
| A9-30-10 | A63-30-00 | A26-40-00 | A16-22-00 |
| A9-30-01 | A50-40-00 | A26-30-10 | A145-30-11 |
| A9-22-00 | A50-30-11 | A26-22-00 | A12-30-10 |
| A75-40-00 | A50-30-00 | A260-30-11 | A12-30-01 |

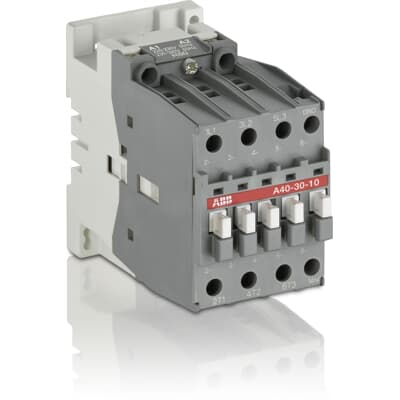

| A75-30-11 | A40-30-10 | A210-30-11 | A110-30-11 |
| A75-30-00 | A40-30-01 | A185-30-11 |
