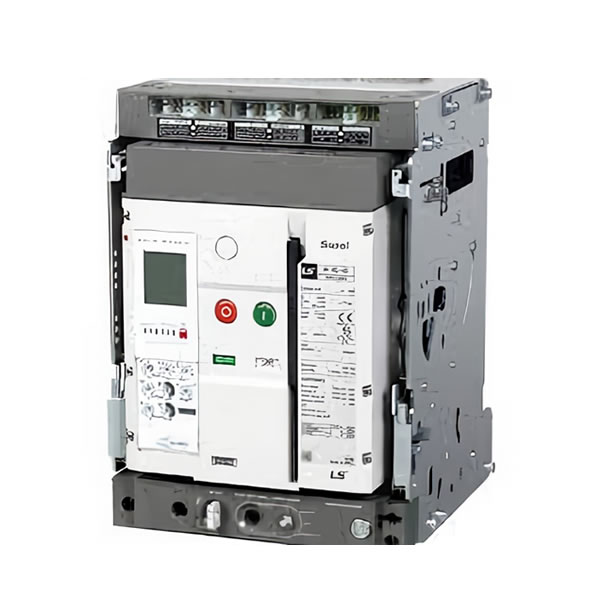

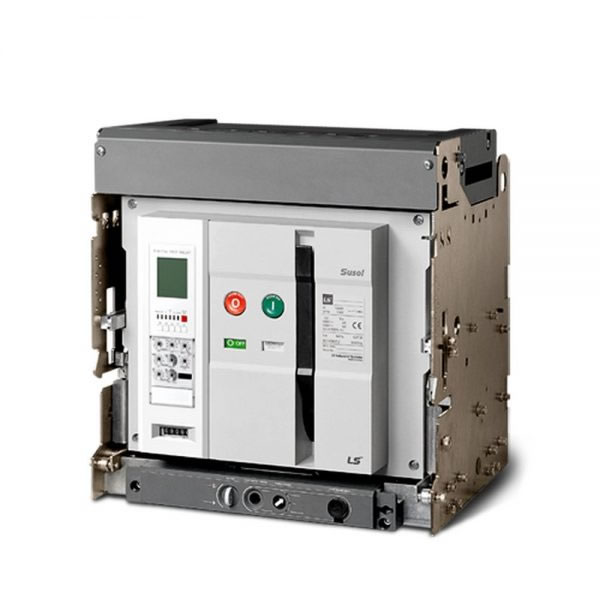

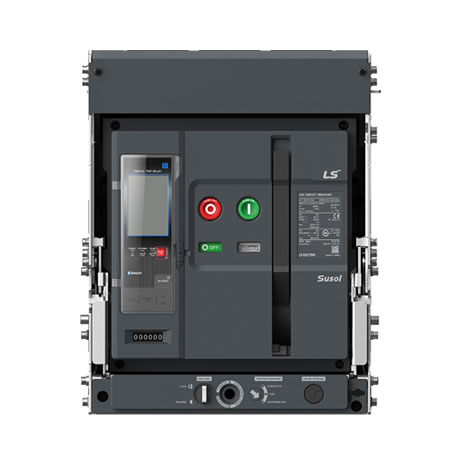

Susol UL Air Circuit Breaker
Premium Susol UL ACB meets your demands for high breaking capacity, full line-up to 6000A, and all-in optimized frame sizes for panel design. Susol UL VCB provides total solutions with an advanced trip relay for measurement, diagnosis, analysis, and communication, as well as protective functions for a complete protective coordination and electric power monitoring system.
Product Overview
Susol UL ACB series are UL listed and ANSI certified low-voltage power air circuit breaker UA series. Up to 6000A, Susol UL ACB provides a full line-up of 3 compact frame sizes, and enables users to design panels of optimal volume.
Benefits
Modular design and compact size to satisfy the need for compact sized panels.
Interchangeable trip unit and rating plug : Easy to modify rated current without CT replacement.
User convenience : Various connection types for main circuit terminals and easy installation of accessories.
Intelligent trip relay provided: Various advanced functions for protection, measurement, diagnosis, analysis, and communication.
Main specification
Ratings : up to 6000A
Rated short circuit current : up to 130kA/508Vac
N phase current conduction capacity : 100%
Standards : UL 1066, ANSI C37
