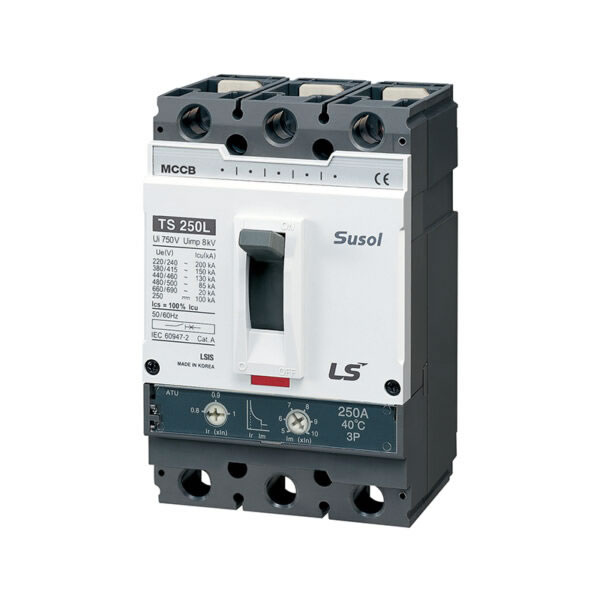

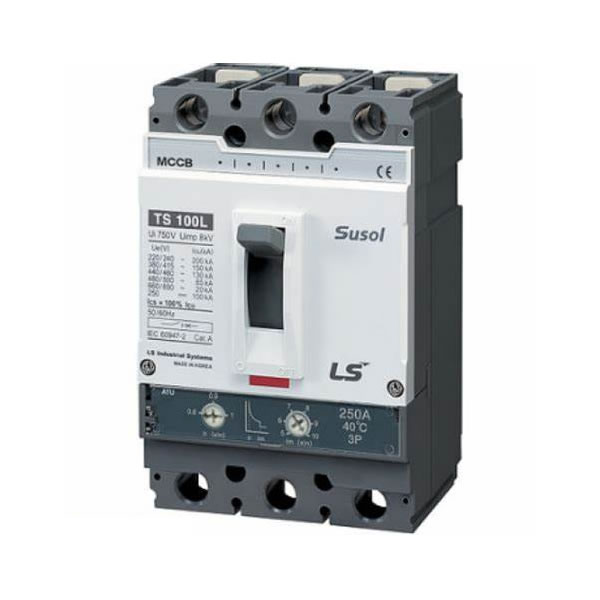

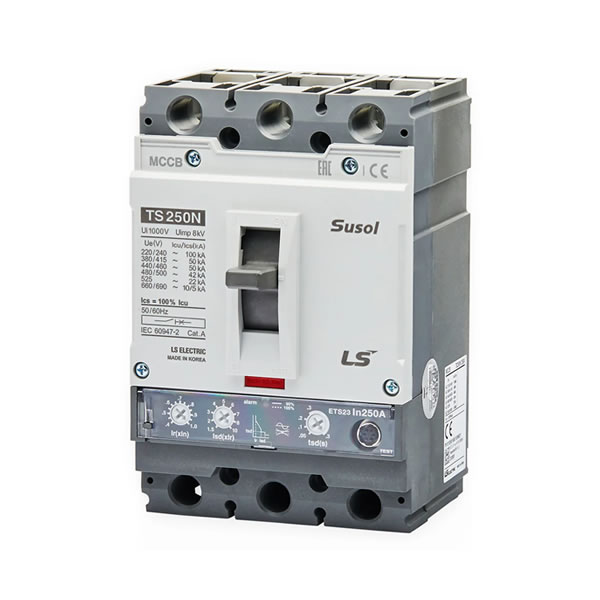

Susol Molded Case Circuit Breaker
High performance molded case circuit breaker for up to 150kA
ㅇ Rated current: 16~1600A
ㅇ Breaking capacity (Icu): 37~150kA
ㅇ Service breaking capacity (Ics): 100%
Susol MCCB
Series : TE, TD, TS
AF : 100AF, 160AF, 250AF, 400AF, 600AF, 800AF, 1000AF, 1250AF, 1600AF
Pole: 2P, 3P, 4P
Trip unit
Thermal magnetic trip unit : FTU, FMU, ATU, MTU
Electronic trip unit : ETS, ETM, OCR
standards :
IEC 60947-2 CB
GB 14048.2 CCC
Susol Switch-Disconnector
Series : TD, TS
AF : 100AF, 160AF, 250AF, 400AF, 600AF, 800AF, 1000AF, 1250AF, 1600AF
Pole: 2P, 3P, 4P
standards :
IEC 60947-3 CB
GB 14048.2 CCC
Type | 160AF | 250AF | 630AF | 800AF | 1600AF |
S | 37kA | - | - | - | - |
TE100S | - | - | - | - | |
N | 50kA | 50kA | 65kA | 65kA | 50kA |
TE100N | - | - | - | - | |
H | 85kA | 85kA | 85kA | 100kA | 70kA |
- | TS100H | - | - | TS1000H | |
L | 150kA | 150kA | 150kA | 150kA | 150kA |
- | TS100L | - | - | - |
